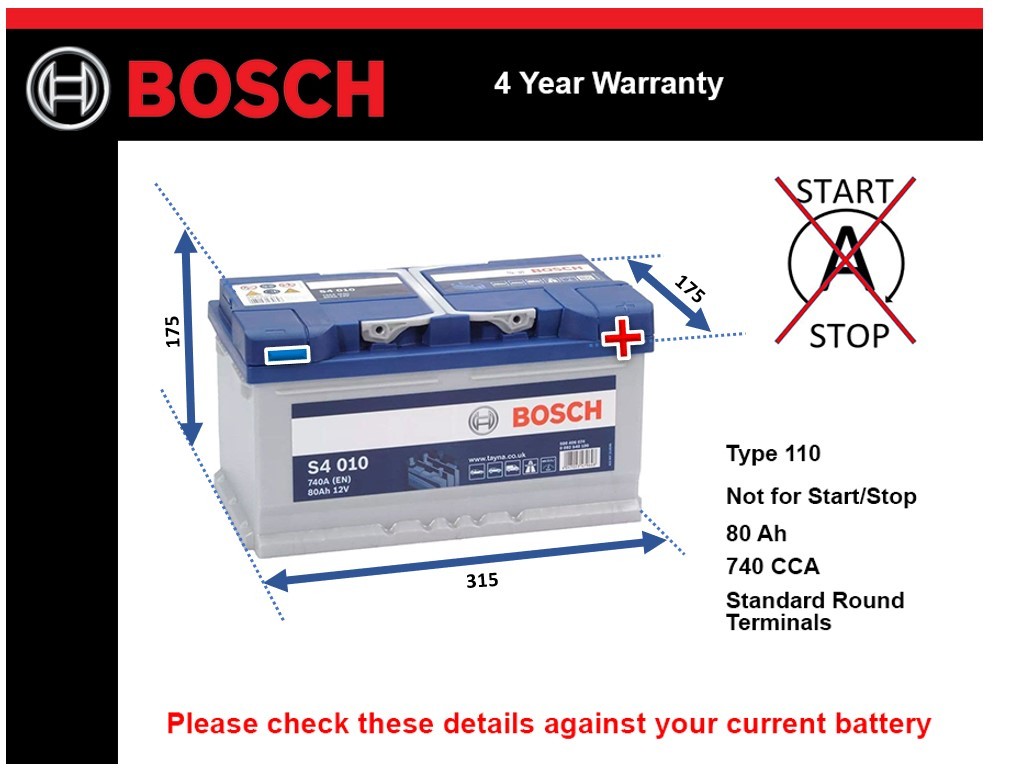

| Brand | Bosch |

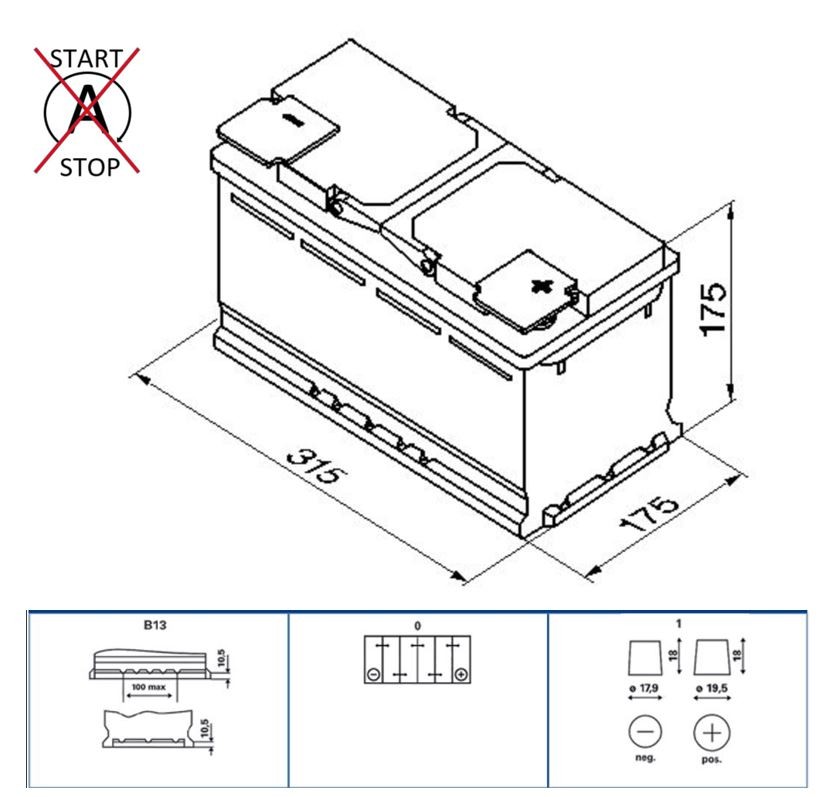

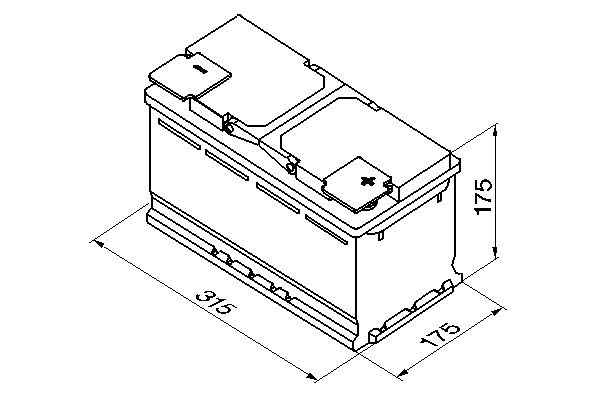

| Length | 315 mm |
| Height | 175 mm |
| Width | 175 mm |
| Voltage | 12 V |
| Ampere-Hours | 80 Ah |
| Cold-test Current, EN | 740 A |
| Extra Description | S4 |
| Cold Cranking Amperage (CCA) | 740 A |

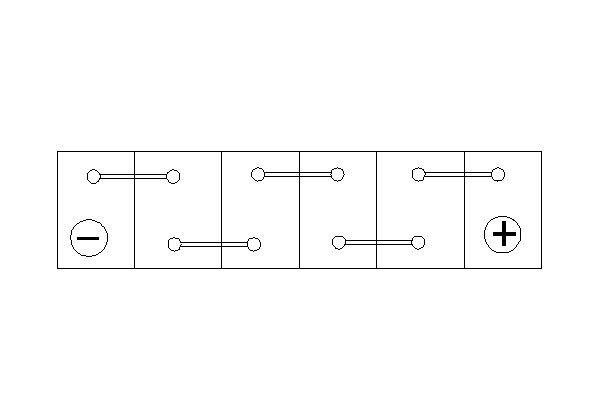

| Terminal Layout | Positive Front Right |

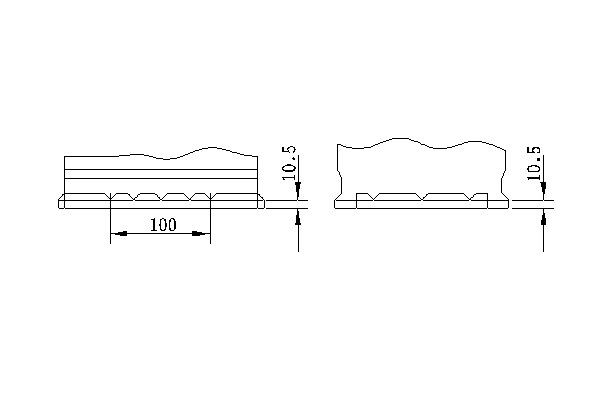

| Hold-down Type | B03 |

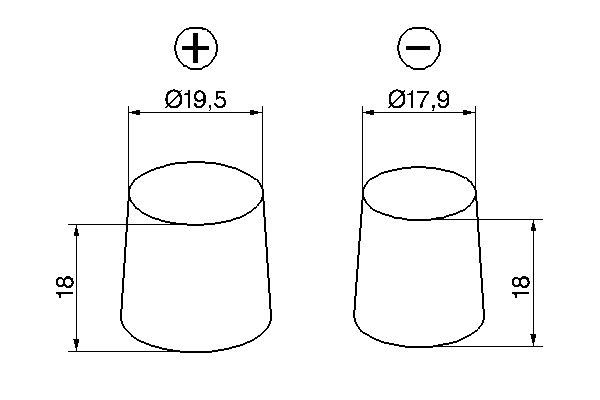

| Terminal Type | 1 |
| Note | Post Positions |
| Battery Type Code | 110 |
| Key Words | 740A; 80Ah; 4Yr Warranty; 315x175x175 |
| Warranty | 4 year warranty |
| Type | Starter Battery |
Documents / Graphics

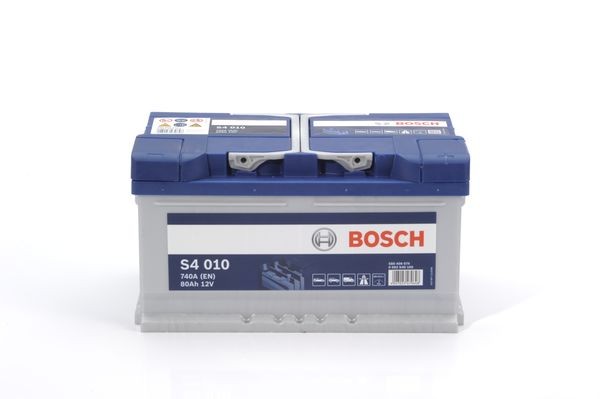

Bosch S4 batteries with PowerFrame® technology
The S4 battery line offers first-class Bosch quality for a variety of requirements and vehicle types. PowerFrame® technology ensures a longer service life and an excellent cold starting performance.
This is a conventional battery which only suitable for vehicles without stop-start technology. If your car is fitted with stop-start, you must fit an EFB (Enhanced Flooded Battery) or AGM (Absorbant Glass Mat) type battery.
Advantages
Please check battery type, dimensions, terminal polarity, and terminal type against the battery being replaced. Even if the battery shows as being compatible with your vehicle, there can sometimes be more than one option depending on individual vehicle specifications. Unfortunately, we cannot guarantee vehicle fitment using vehicle details alone.
Made for Cars with Basic Power Needs
For older cars with manually operated windows, a standard source of power is perfectly adequate. But here again it is best to go for top Bosch quality. The S4 model series provide reliable car batteries to suit all requirements and makes of vehicle. Their PowerFrame® technology not only allows fast, low-resistance charging and discharging, it also makes it possible to achieve a much longer service life, a higher capacity and outstanding cold starting power.
PowerFrame® technology in Bosch S4 batteries
The grid is of crucial importance for a battery's performance and reliability. The patented PowerFrame® offers considerable advantages over conventional grids, and is responsible for an optimum flow of electricity. Bosch S4 batteries therefore impress with their outstanding starting power and longer service life.
More power right from the start: Advantages of PowerFrame® technology
Rigid grid frame
Prevents grid growth and corrosion at the edges and so damage to the separator, or short circuits caused by the grid making contact with the negative plate. PowerFrame® patented grid technology is up to 66% more durable and more corrosion-resistant than other grid designs.
Patterned for Power
The PowerFrame® grid design provides superior cranking power with up to 70% better electrical flow than other grid technologies.
Stamped grid
The rigid, precise structure ensures excellent adhesion of the active material to the grid and permits low-resistance, rapid charging and discharging of the battery. In contrast to conventional grids, there is no brittleness arising from mechanical deformation during production.
Clean Construction
PowerFrame® manufacturing uses 20% less energy and produces 20% fewer greenhouse gases than other manufacturing methods.
Optimum grid structure
More lead is applied to the areas subject to a higher load: the grid is more hard-wearing and resistant to corrosion.
Grid designed for optimum flow
In this innovative design, the grid bars lead directly to the plate link. The low flow resistance ensures optimum conductivity and the fastest possible supply of power to the electrical device.
The SAE J240 (75 °C) life test shows that
The stamped grid (right) exhibits minimal corrosion with virtually no loss of conductivity. In the grid on the left, the material between the alloy grains has suffered corrosion, resulting in a weak flow of current and a shorter service life.
PowerFrame® in comparison with a conventional grid
Bosch's portfolio of products is steeped in OE quality and provides one of the most comprehensive ranges of OE aftermarket parts, Bosch's continual investment in research and development allows it to be the worlds largest supplier of cutting edge automotive technology.
